SMTCL High precision 20000rpm FANUC VMC1100P Gantry Frame Structure CNC Vertical Machining Center

SMTCL High precision 20000rpm FANUC VMC1100P Gantry Frame Structure CNC Vertical Machining Center

High precision series

High speed 20000rpm

Gantry Frame Structure

Luogo di origine:

Cina

Marca:

SMTCL

Certificazione:

CE ISO certification

Numero di modello:

VMC1100P

Contattaci
Chiedi un preventivo
Dettagli del prodotto
Marca:
SMTCL
Numero di modello:
VMC1100P
CNC oppure no:
cnc
Parola chiave:
Centro di lavorazione verticale
Alta rigidità:
struttura del telaio del portiere
Dimensione del tavolo (L×W):
1300×560 mm
Velocità del mandrino:
20000 giri/min
Viaggio dell'asse x:
1050 mm
Y Asse Travel:
560 mm
Z Axis Travel:
450 mm
Fusoliere a superficie del tavolo:
160-610 mm
Termini di pagamento e di spedizione
Quantità di ordine minimo
1
Imballaggi particolari
Cassa di legno, baule di latta, altro imballaggio per la navigazione.
Tempi di consegna
45-60 giorni
Termini di pagamento
T/T, L/C, Western Union
Capacità di alimentazione
50 set al mese
Descrizione del prodotto

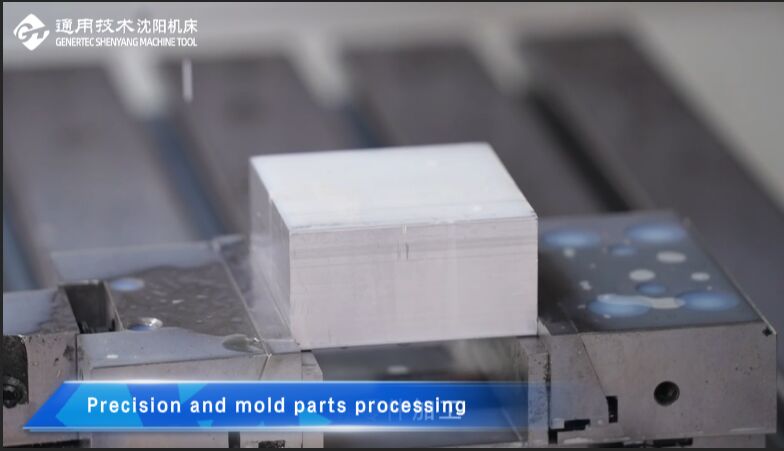

SMTCL High precision 20000rpm FANUC VMC1100P Gantry Frame Structure CNC Vertical Machining Center 0

Product Description:

SMTCL High precision 20000rpm FANUC VMC1100P Gantry Frame Structure CNC Vertical Machining Center
VMC1100P products are high-performance vertical machining centers independently developed for aerospace, mold, automotive and other industries. The whole machine adopts gantry frame structure, wall type column, the overall rigidity is stable, suitable for mold parts processing; The machine is equipped with temperature detection system, which automatically compensates according to different environmental systems to ensure the same machining accuracy and size; The lead screw drive and main shaft are equipped with cooling function to inhibit the heat generated by the whole machine in the process of processing, and has excellent thermal deformation resistance. High precision, high rigidity, high efficiency, rich configuration, can meet the needs of aerospace, mold and other fields of high-quality parts processing.
Product Details:

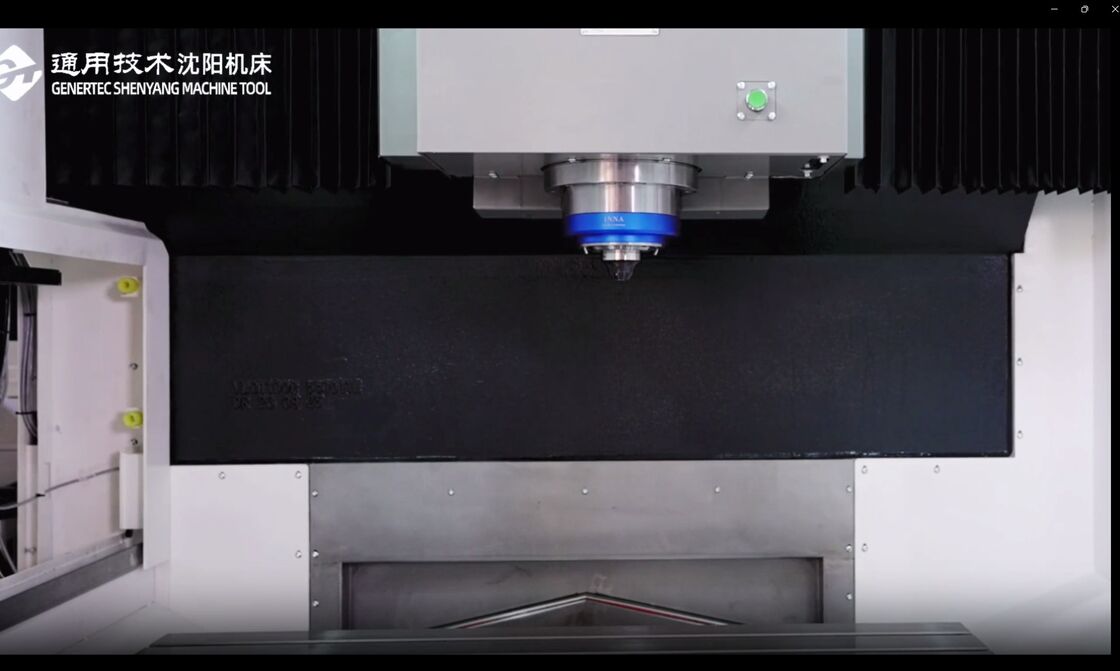

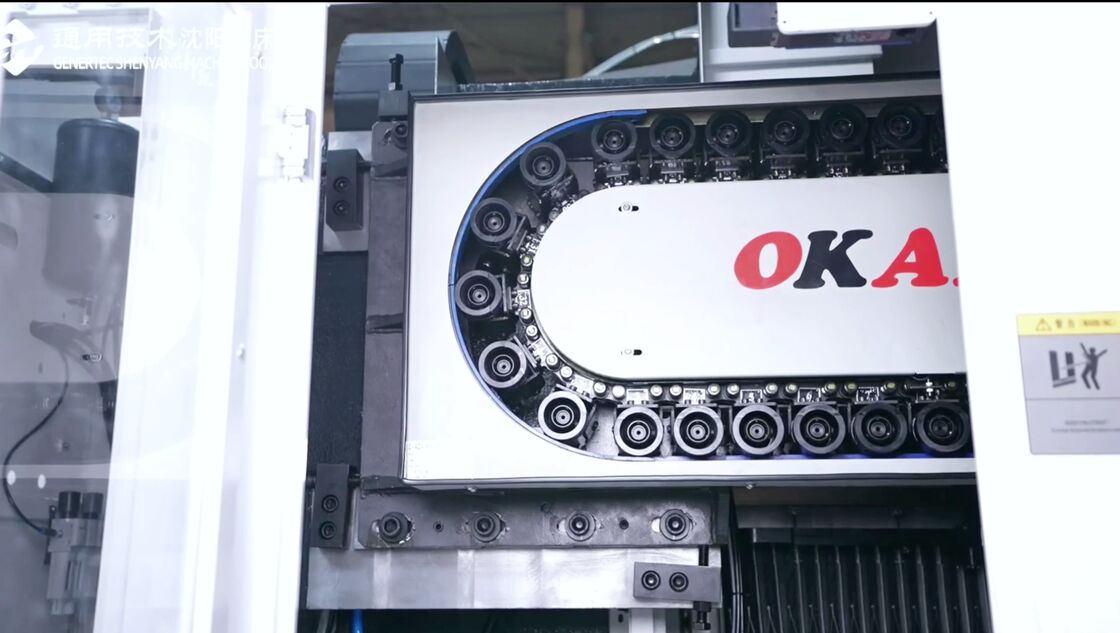

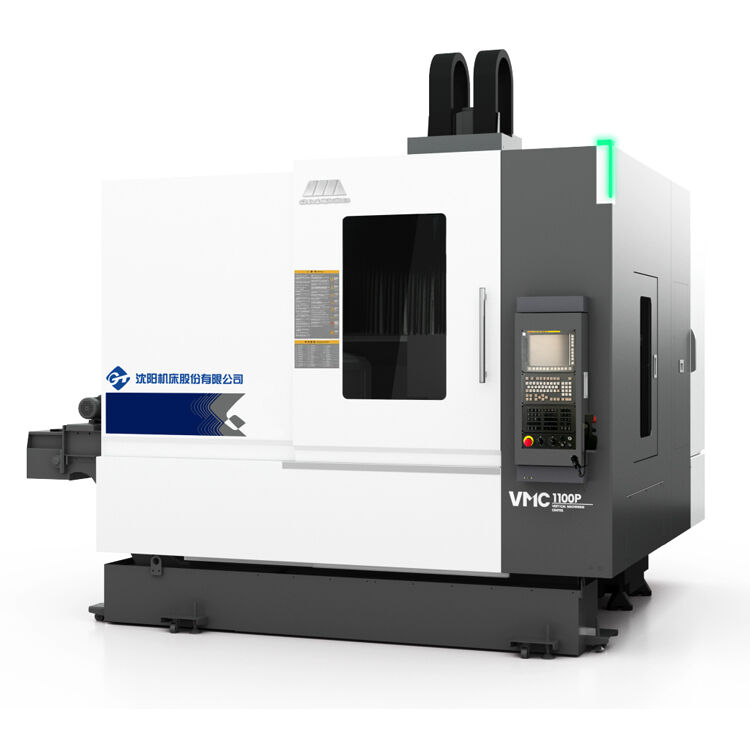

SMTCL High precision 20000rpm FANUC VMC1100P Gantry Frame Structure CNC Vertical Machining Center 1SMTCL High precision 20000rpm FANUC VMC1100P Gantry Frame Structure CNC Vertical Machining Center 2SMTCL High precision 20000rpm FANUC VMC1100P Gantry Frame Structure CNC Vertical Machining Center 3

Product Paramenters:

Item
Unit
Specifications
Capacity
X axis travel
mm
1050
Y axis travel
mm
560
Z axis travel
mm
450
Spindle nose to table surface

mm
160-610
Worktable
Table size (L×W)
mm
1300×560
Max load on the table

kg
700
T-slot size
mm
18×5
Spindle
Spindle speed
rpm
20000
Spindle taper


HSK-A63
Spindle motor power
kw
22
Rated output torque
N.m
30.9
Spindle drive mode

Motorized spindle
Feed rate
X,Y,Z rapid traverse
M/min
24/24/24
Feed rate
MM/min
1-20000
A.T.C
Tool storage capacity
pc
32
Max tool length
mm
300
Maximum tool weight
kg
8
Max. tool disk dia. (full)
mm
75
Max. tool disk dia. (adjacent)
mm
150
Tool change time(T-T)
sec
8
Accuracy
Positioning accuracy X/Y/Z

mm
0.005
Repeatability positioning X/Y/Z

mm
0.003
Others
Net machine weight
kg
11500
system

FANUC 31i

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:

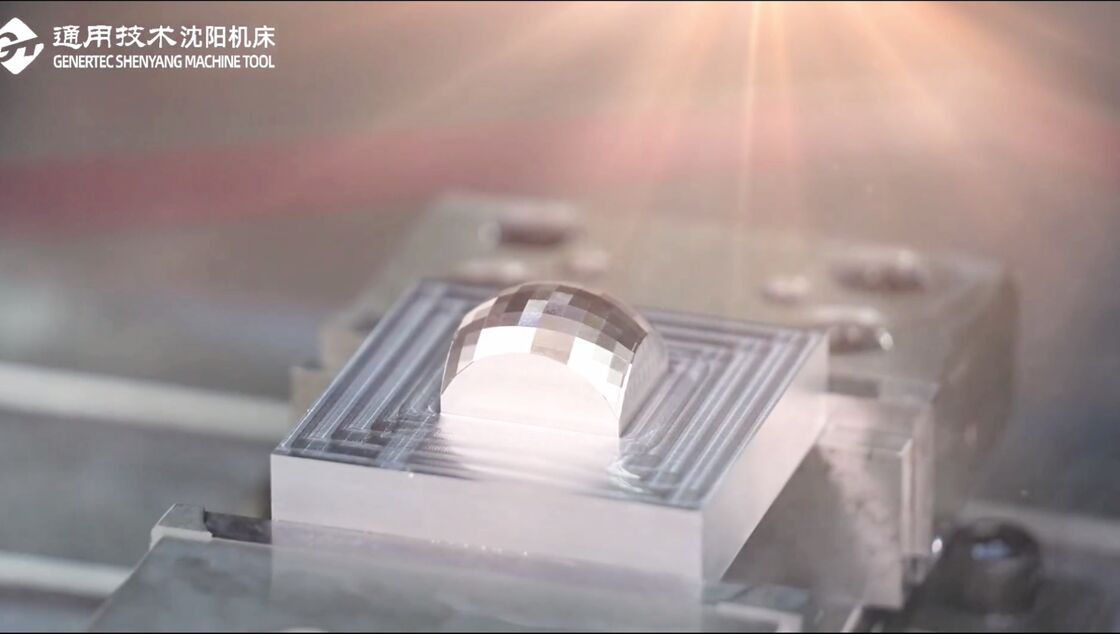

SMTCL High precision 20000rpm FANUC VMC1100P Gantry Frame Structure CNC Vertical Machining Center 4
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
SMTCL High precision 20000rpm FANUC VMC1100P Gantry Frame Structure CNC Vertical Machining Center 5

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
