Name: SMTCL Economical Vertical CNC Machining Center IV85 GSK Controller Vertical Machining Center
Brand: Shanghai HD ME Tech Co., Ltd.
SKU: IV85
Availability: InStock

Casa > prodotti > Centro di lavorazione verticale di CNC >

SMTCL Economical Vertical CNC Machining Center IV85 GSK Controller Vertical Machining Center

GSK Controller

10000 rpm

Economical Vertical CNC Machining Center

Luogo di origine:

Cina

Marca:

SMTCL/SYMG

Certificazione:

ISO certification

Numero di modello:

IV85

Contattaci

Chiedi un preventivo

Dettagli del prodotto

Tipo::

Verticale

Sistema di controllo di CNC::

FANUC, Siemens, GSK

Dimensione del tavolo (L×W):

1150x500 mm

Y Asse Travel:

500 mm

Viaggio dell'asse x:

1000 mm

Z Axis Travel:

540 mm

Velocità di avanzamento (mm/min)::

1 - 10000 mm/min

Potere del motore mandrino (chilowatt)::

Capacità della rivista dello strumento::

Marchio::

SYMG, SMTCL

Termini di pagamento e di spedizione

Quantità di ordine minimo

1 insieme

Prezzo

Negoziabile

Imballaggi particolari

Cassa di legno, baule di latta, altro imballaggio per la navigazione.

Tempi di consegna

45-60 giorni

Termini di pagamento

L/C,T/T,Western Union

Capacità di alimentazione

50 set al mese

PRODOTTI RELATIVI

Video

Centro di lavoro per foratura e maschiatura ad alta velocità SMTCL DTC500 Centro di lavoro verticale

Ottieni il miglior prezzo

Video

Centro di lavoro verticale CNC SMTCL VMC1000Q per foratura, alesatura e maschiatura metalli, fresatrice CNC a 3 assi

Ottieni il miglior prezzo

Video

Centrale di lavorazione verticale ad alta precisione VMC850Q

Ottieni il miglior prezzo

Video

SMTCL VMC 1300B CNC Torno e fresatura per metallo Centro di lavorazione verticale

Ottieni il miglior prezzo

Contattaci

+8613916455787

sales@huidijd.com

86-021-61195255

Contatta ora

Descrizione del prodotto

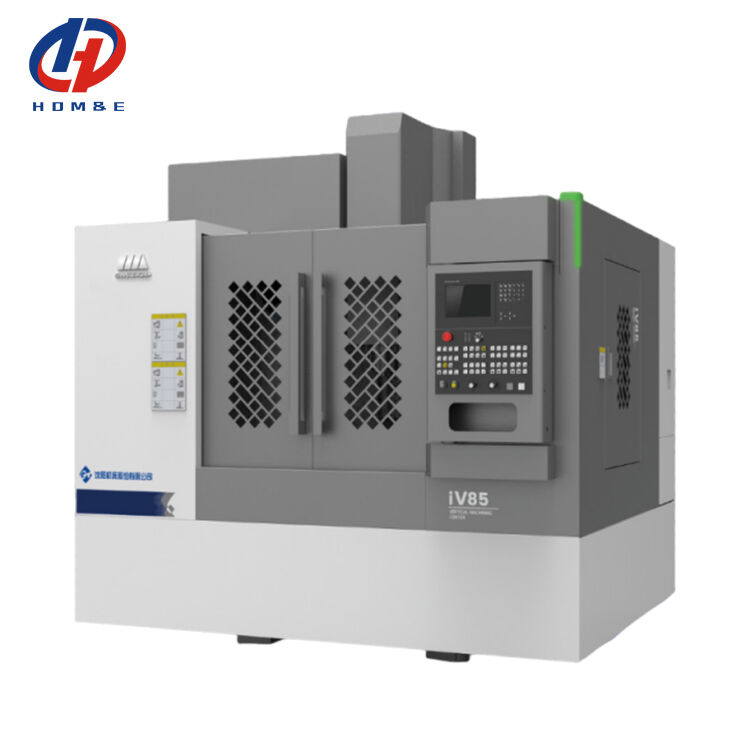

SMTCL Economical Vertical CNC Machining Center IV85 GSK Controller Vertical Machining Center 0

Product Description:

SMTCL Economical Vertical CNC Machining Center IV85 GSK Controller Vertical Machining Center

The iV85 product is mainly used for processing parts in industries such as automobiles, motorcycles, and agricultural machinery. It can meet the requirements of efficient and large-scale processing. The entire machine adopts a vertical frame layout. The human-shaped columns are fixed on the bed, and the main spindle box moves up and down along the columns (in the Z direction), the slide seat moves longitudinally along the bed (in the Y direction), and the worktable moves laterally along the slide seat (in the X direction). The machine has a large load-bearing capacity, high rigidity, low dynamic and static friction, high sensitivity, small high-speed vibration, low-speed no crawling, high positioning accuracy, and excellent servo drive performance. The modular design, high-performance customized configuration, can continuously complete milling, drilling, reaming, tapping, boring, tapping and other operations, as well as two-dimensional and three-dimensional curved surface and inclined surface precise processing, achieving better economic benefits.

PRODUCT SPECIFICATIONS:

Item		Unit	IV85
Worktable	Table size (L×W)	mm	1000×500
	Max load on the table	kg	600
	T-slot size	mm	18×5
Capacity	X axis travel	mm	850
	Y axis travel	mm	500
	Z axis travel	mm	540
	Spindle nose to table surface	mm	120-660
Spindle	Spindle taper		BT40
	Spindle speed	rpm	10000
	Spindle motor	kw	11
	Maximum output torque	N.m	52.5
	Spindle drive type		Synchronous tooth belt
Feed	X/Y/Z rapid traverse	m/min	48/48/48
Feed	Feed rate	mm/min	1-20000
A.T.C	Tool storage capacity	pc	Arm type 24
	Max tool weight	kg	7
	Max tool length	mm	300
	Max tool diameter(Full Cutting)	mm	80
	Max tool diameter(Air Cutting)	mm	125
	Tool change time(T-T)	sec	2.5
Positioning Accuracy	X	mm	0.008
Positioning Accuracy	Y/Z	mm	0.006
Repeatability Accuracy	X	mm	0.005
Repeatability Accuracy	Y/Z	mm	0.004
Others	Net machine weight	kg	4900
Others	CNC System		F01-22MA-10-STD-DG

Why Choose Us :

◆ Top quality sense, customers' requests come first

◆ 30 years + R & D history, the company was founded in 1993

◆ High-tech manufacturer with research anddesign capacity

◆ Stable and mature supplying system

◆ Young active sales and engineers for instant services(24 hours online)

◆ Upgrading on mechanism according to ergonomics and easy maintenance

◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production

About Us:

Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.

Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!

Our Factory:

SMTCL Economical Vertical CNC Machining Center IV85 GSK Controller Vertical Machining Center 2

Exhibition:

SMTCL Economical Vertical CNC Machining Center IV85 GSK Controller Vertical Machining Center 3

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.

Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.

Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.

Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system

Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.

Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
