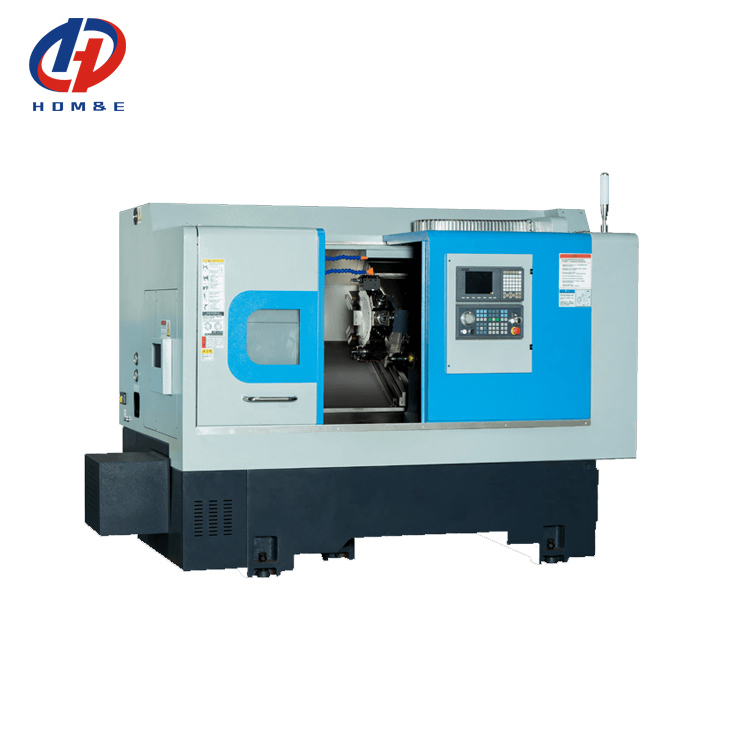

Double Spindle CNC Turning Center HTCSY50-S Interpolation Y-axis Turning and Milling Center

Marchio: HD
Numero di modello: HTCSY50-S
Luogo di origine: Cina
Certificazione: CE ISO certification
Quantità minima di ordine: 1
Capacità di fornitura: 50 set al mese
Tag

Macchina orizzontale del tornio a torretta

Macchina del centro del mulino di giro di CNC HDTN600

Macchina del centro del mulino di giro di CNC di 3 assi

Dettagli del prodotto

Marca: SMTCL Numero di modello: HTCSY50-S
CNC o no: CNC Parola chiave: Centro di svolta orizzontale
Max. nuotare sopra il letto.: Φ700 Massimo. diametro tornibile:: Φ350
Viaggio dell&#39;asse x: 200 (diametro 400mm) Y Asse Travel: 90 (±45)
Z Axis Travel: 550 Velocità del fuso: 4000 giri/min
Evidenziare

Double Spindle

,

Turning and Milling Center

,

CNC Turning Center

Descrizione del prodotto

Double Spindle CNC Turning Center HTCSY50-S Interpolation Y-axis Turning and Milling Center 0

Product Description:

Double Spindle CNC Turning Center HTCSY50-S Interpolation Y-axis Turning and Milling Center
HTCSY50-S, featuring the interpolation Y - axis turning and milling function. The one - piece cast bed has high rigidity and stability, which can support complex milling operations. It is equipped with the Taiwan Syntec 22tb series main control system to achieve multi - axis linkage. The self - made 12 - station servo power turret has a fast tool - changing speed. Combined with the interpolation Y - axis, it can efficiently complete composite machining such as turning,milling, drilling and tapping, easily handling the machining of complex parts.

Product Features:

1. The machine bed is an integrated cast high-rigidity bed with large anti-vibration damping and small deformation.
2. The 30° slant bed design makes it convenient for the operator to install and remove workpiece, and easy for chips removal. 3. Standard parts including servo turret, fast tool change and multi-tool positions.
4. Full-proof internal protection, effectively separating the machining area with better oil-proof, water-proof and dust-proof effect.
5. Tailstock has the function of fast forward and then slow forward.
6. Suitable for turning and milling multi-function workpiece.

Product Details:

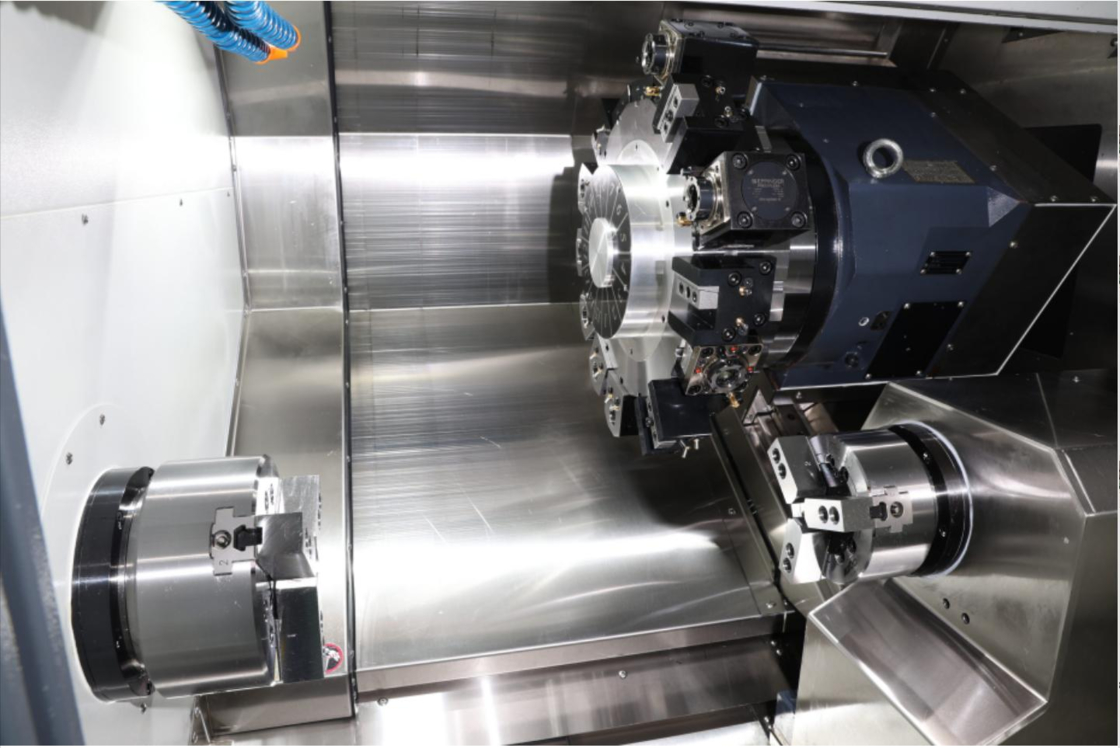

Double Spindle CNC Turning Center HTCSY50-S Interpolation Y-axis Turning and Milling Center 1

Product Paramenters:
Item
Units
HTCSY52-S
Power:
3P
380V/50Hz
Max. swing over bed diameter:
mm
Φ700
Max. turning diameter:
mm
Φ350
X axis travel:
mm
200 (diameter 400mm)
Z axis travel:
mm
550
Y axis travel:
mm
90 (±45)
X/Z axis rapid traverse speed:
m/min
25
Main spindle chuck size:
“
8
Main spindle taper:
/
A2-6
Main spindle through hole diameter:
mm
Φ65
Main spindle max bar size:
mm
Φ52
Main spindle max. speed:
r/min
4000
Main spindle motor:
kW
11
Sub-spindle chuck size:
“
6
Main spindle taper:
/
A2-5
Sub-spindle hrough hole diameter:
mm
Φ55
Sub-spindle max. speed:
r/min
4000
Sub-spindle motor:
kW
11
Slant bed degree:
°
30
Turret with live head:
/
12 tool holder, BMT55
Power capacity:
kW
30
Overall dimension: L×W×H
mm
3030×2045×2050
Machine weight(about):
kg
4800
Main part brand:
Item
Qty
Brand
Control system:
1
SYNTEC
X/Z/Y axis motor/driver:
3
SYNTEC
Main spindle motor/driver:
1
SYNTEC
Sub-spindle motor/driver:
1
HYSIS
X/Z/Y screw:
3
PMI
X/Z/Y linear guideway:
3
PMI
Spindle bearing:
1
NTN/SKF/KOYO
Hydraulic chuck:
1
Taiwan
Spare parts free of charge:
Item
Qty
Model No.
Tool holder
3
Drilling
1
Axial
4
Radial
Live head
2
For 0°
2
For 90°
Optional item price list:
Item

Qty
Part catcher for simple automation
1
Bath feeder, brand:LNS
1
Oil skimmer
1
Tool pre-setter, brand: RENISHAW
1
Chip conveyor
1

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
Double Spindle CNC Turning Center HTCSY50-S Interpolation Y-axis Turning and Milling Center 2
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
Double Spindle CNC Turning Center HTCSY50-S Interpolation Y-axis Turning and Milling Center 3

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
