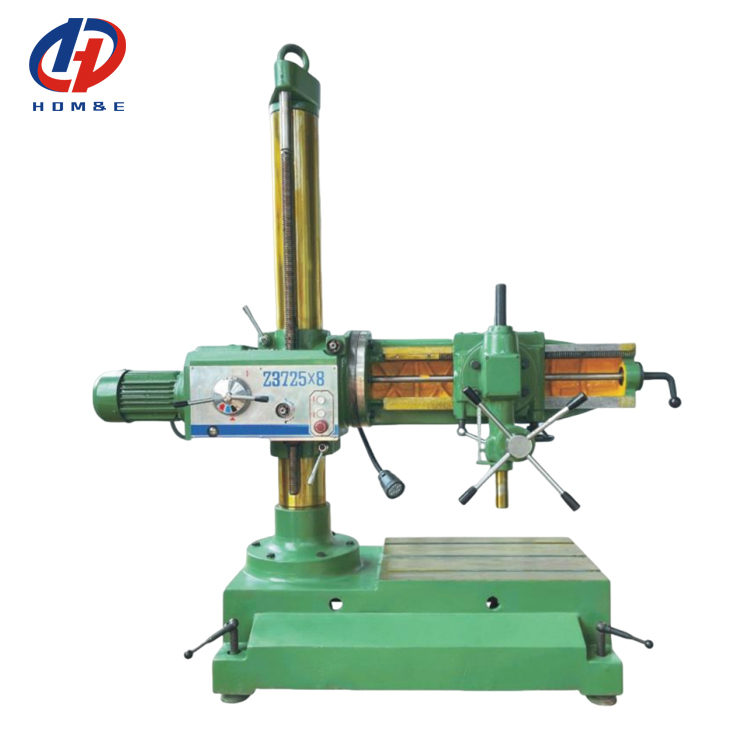

Universal Radial Drill Z3725 Mechanical Speed Change Hydraulic Radial Drilling Machine

Universal Radial Drill Z3725 Mechanical Speed Change Hydraulic Radial Drilling Machine

360° Swivel angle of arm

Precision Radial Drilling Machine

25mm+ Max Drilling Diameter

Place of Origin:

CHINA

Marca:

HD

Certificazione:

CE ISO certification

Model Number:

Z3725

Contattaci
Chiedi un preventivo
Dettagli del prodotto
Marca:
HD
Model Number:
Z3725
CNC or Not:
Manual
Key word:
Radial Drilling Machine
Spindle travel:
130 mm
Maximum hole diameter:
25 mm
Taper in spindle:
3 morse
Swivel angle of arm:
360°
Termini di pagamento e di spedizione
Minimum Order Quantity
1
Packaging Details
The wooden case,Tin trunk ,Other seaworthy packing
Delivery Time
45-60 days
Payment Terms
T/T,L/C,,Western Union
Supply Ability
50 sets per month
Descrizione del prodotto

Universal Radial Drill Z3725 Mechanical Speed Change Hydraulic Radial Drilling Machine 0

Product Description:

Universal Radial Drill Z3725 Mechanical Speed Change Hydraulic Radial Drilling Machine
Universal Radial Drill Z3725: Spindle with 360° universal adjustment, maximum drilling diameter 25mm, equipped with hydraulic clamping system. Supports drilling, counterboring, reaming, etc. Suitable for complex metal processing in small and medium-sized factories, efficient and precise.

Product Features:

1,Compact design,beautiful appearance, easy to maintenance

2,Manual clamping mechanisms,wide speed and feed range

3,Compactly operating,reliable and good mobility

4,Has a supper rigidity and power in drilling

5,Drilling,reaming,counter boring,boring,tapping

Product Details:
Universal Radial Drill Z3725 Mechanical Speed Change Hydraulic Radial Drilling Machine 1Universal Radial Drill Z3725 Mechanical Speed Change Hydraulic Radial Drilling Machine 2Universal Radial Drill Z3725 Mechanical Speed Change Hydraulic Radial Drilling Machine 3Universal Radial Drill Z3725 Mechanical Speed Change Hydraulic Radial Drilling Machine 4Universal Radial Drill Z3725 Mechanical Speed Change Hydraulic Radial Drilling Machine 5Universal Radial Drill Z3725 Mechanical Speed Change Hydraulic Radial Drilling Machine 6Universal Radial Drill Z3725 Mechanical Speed Change Hydraulic Radial Drilling Machine 7
Product Paramenters:
SPECIFICATIONS
Unit
Z3732×8
Maximum hole diameter
mm
25
Center of the column to the center of the spindle
mm
350-800
Horizontal traverse of spindle head on arm
mm
500
Horizontal traverse of spindle head on arm
mm
50-800
Vertical travel of arm on column
mm
830
Elevating speed of arm
m/min
0.26
Swivel angle of arm
degger
360°
Taper in spindle
morse
3
Range of spindle feeds
r/min
112~1120
Range of spindle feeds
mm/r
Manual feed
Number of spindle feeds
steps
4
Spindle travel
mm
130
Maximum permissible torque of spindle
N.m
100
Maximum permissible feed pressure of spindle
Kn
3

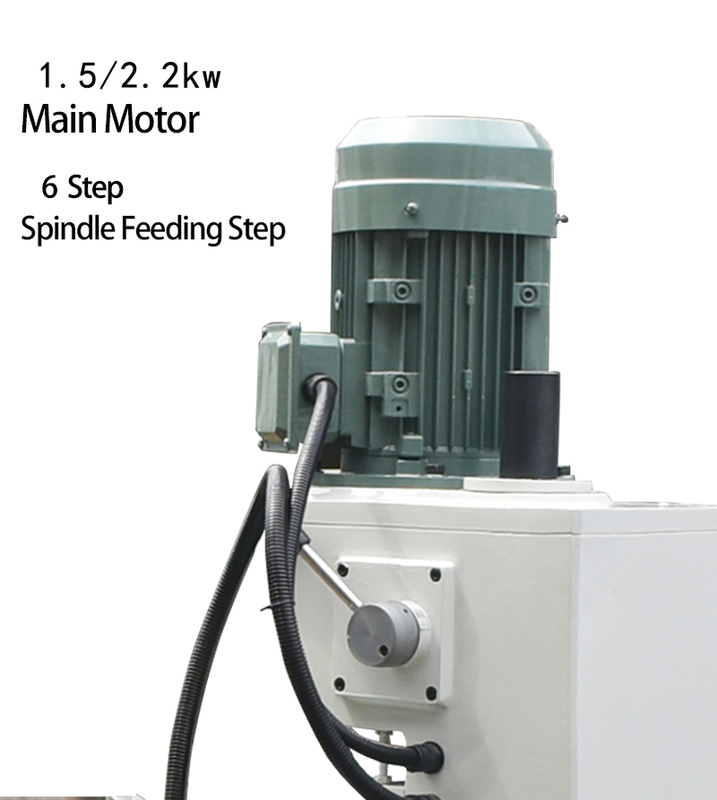

Power of the main drive motor
Kw
1.5
Machine weight
Kg
880
Overall dimensions
mm
1757×750×1990


OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
Universal Radial Drill Z3725 Mechanical Speed Change Hydraulic Radial Drilling Machine 8
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
Universal Radial Drill Z3725 Mechanical Speed Change Hydraulic Radial Drilling Machine 9
Exhibition:

Universal Radial Drill Z3725 Mechanical Speed Change Hydraulic Radial Drilling Machine 10

FAQ:



Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.

Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.

Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.

Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system

Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.

Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
